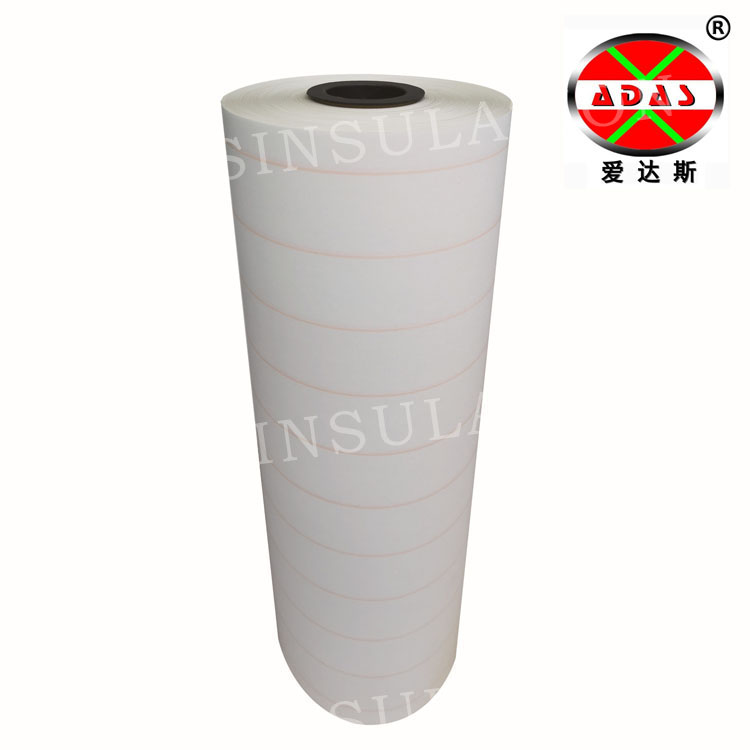

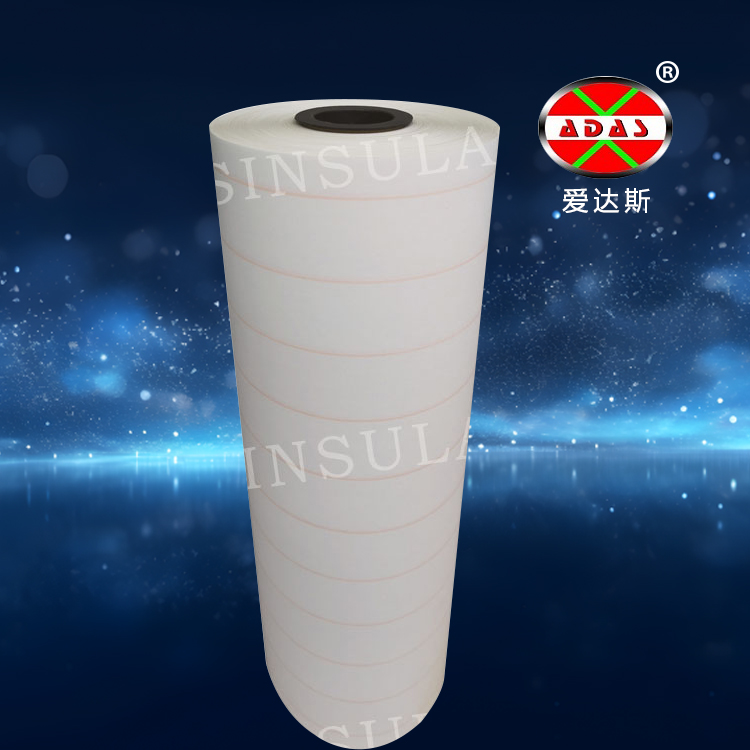

ADASTHERM® AF(AMA:ARAMID+FILM +ARAMID)
ADASTHERM AF is a kind of insulation paper which is Aramid paper laminated with mylar film, which is 3 layers’ lamination, the technical features and uses are similar with NMN.
Technical Data: Appearance: Smoothness, non-blistering, non-folding
Thickness and Tolerance: 0.15mm±0.02, 0.18mm±0.02 0.20mm±0.02, 0.25mm±0.02 0.30mm±0.03, 0.35mm±0.03 0.40mm±0.03, 0.45mm±0.03
Standard Width: 1000mm±10
Package: 50 kgs±5 per roll
Breakdown Voltage: 0.15mm— 7kv, 0.18mm—10kv, 0.20mm—11kv 0.25mm—13kv, 0.30mm—15kv, 0.35mm—20kv 0.40mm—22kv, 0.45mm—24kv
Thermal Class: F (155℃)
Standard: IEC60626-3:1988
