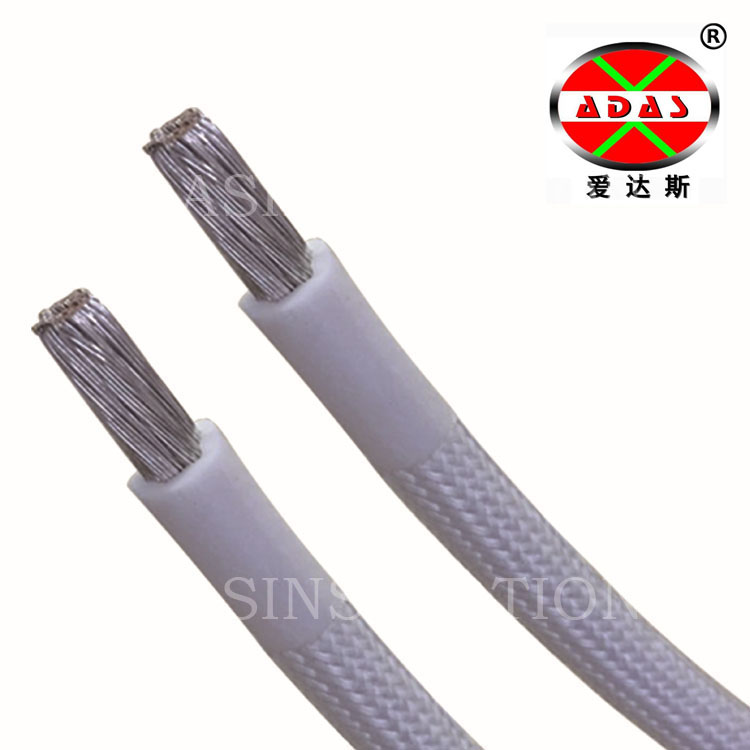

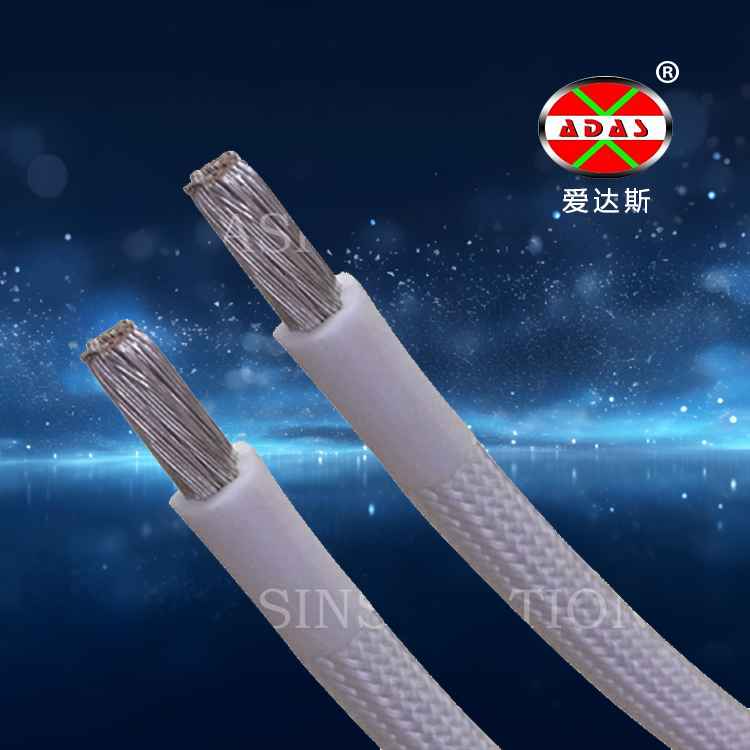

    SILICONE RUBBER INSULATED AND FIBERGLASS BRAIDED WIRE

    Product Description
    Nominal Voltage:300V
    Temperature Range: -60℃～+200℃
    Testing Voltage:2000V
    Conductor:Bare copper, Tinned Copper or Nickel plated copper
    Insulator:Silicone
    Pleach:Fiberglass
    Colours:White-Blue-Red-Black-Brown-Yellow-Green
    -Yellow/Green

    Conductor Insulator Realst.max Permissible
    AWG Nominal Conductor Diameter Nominal Fiberglass Nominal Max
    area construction Thickness Thickness Diameter Diameter Cuc,c 20℃ ampacity
    mm2 NO.X ￠mm mm mm mm mm mm ohm/km 20℃-AMR
    26 0.128 7/0.16 0.48 0.39 0.2 1.66 1.8 143 1.72
    24 0.205 7/0.20 0.6 0.39 0.2 1.78 1.95 92 2.57
    22 0.324 7/0.25 0.75 0.39 0.2 1.96 2.1 56.8 4.36
    20 0.519 7/0.32 0.96 0.39 0.2 2.15 2.3 40.1 6.94
    18 0.823 7/0.40 1.2 0.39 0.2 2.38 2.55 23 11.01
    16 1.31 7/0.50 1.5 0.39 0.2 2.68 2.85 14.6 17.52
    14 2.08 41/0.254 1.83 0.45 0.2 3.2 3.4 9.9 27.84
    12 3.31 19/0.50 2.48 0.5 0.2 3.9 4.2 5.4 44.2
    24 0.2 1/0.50 0.5 0.39 0.2 1.7 1.85 88.3 2.68
    22 0.3 1/0.62 0.62 0.39 0.2 1.8 2 62.4 4.42
    20 0.5 1/0.80 0.8 0.39 0.2 2 2.2 38.6 7.07
    18 0.75 1/1.0 1 0.39 0.2 2.2 2.4 22.5 11.21
    24 0.2 12/0.15 0.6 0.39 0.15 1.7 1.9 95 4.9
    22 0.3 17/0.15,12/0.18 0.75 0.39 0.15 1.9 2.1 71.2 6
    20 0.5 28/0.15,20/0.18 6/0.20 0.94 0.39 0.2 2.2 2.4 40.1 8.6
    18 0.75 40/0.15,30/0.18 24/0.20 1.14 0.39 0.2 2.4 2.6 26.7 11.6
    17 1 40/0.18,32/0.20 1.31 0.39 0.2 2.6 2.8 20 14.4
    16 1.25 50/0.18,40/0.20 1.48 0.39 0.2 2.7 2.9 15.9 16.9
    15 1.5 48/0.20,30/0.25 1.58 0.39 0.2 2.9 3.1 13.7 19.7
    14 2 41/0.25 1.83 0.45 0.2 3.2 3.4 9.9 26
    13 2.5 49/0.25 2.02 0.45 0.2 3.5 3.8 8.21 30.3
    12 3.5 49/0.30 2.48 0.5 0.2 4.1 4.4 5.38 41
    11 4 56/0.30 2.59 0.6 0.2 4.4 4.8 5.09 49
    10 5.5 77/0.30 3.03 0.6 0.25 5 5.4 3.5 63
    8 8 63/0.40 3.67 0.7 0.25 5.9 6.3 2 88.6
    6 14 112/0.41 4.78 0.8 0.25 7.4 7.8 0.8 148
    Note:Max types we can supply is 500mm2.
