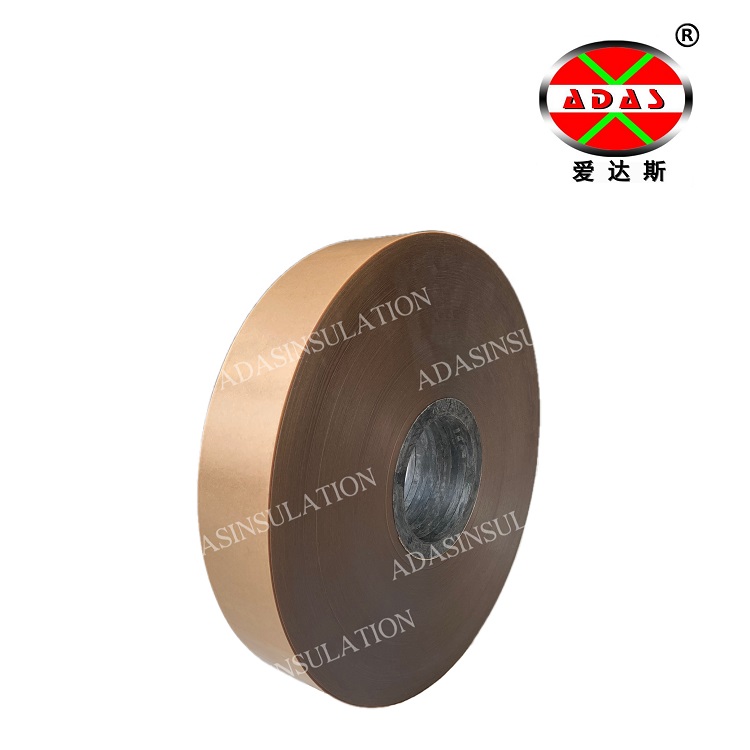

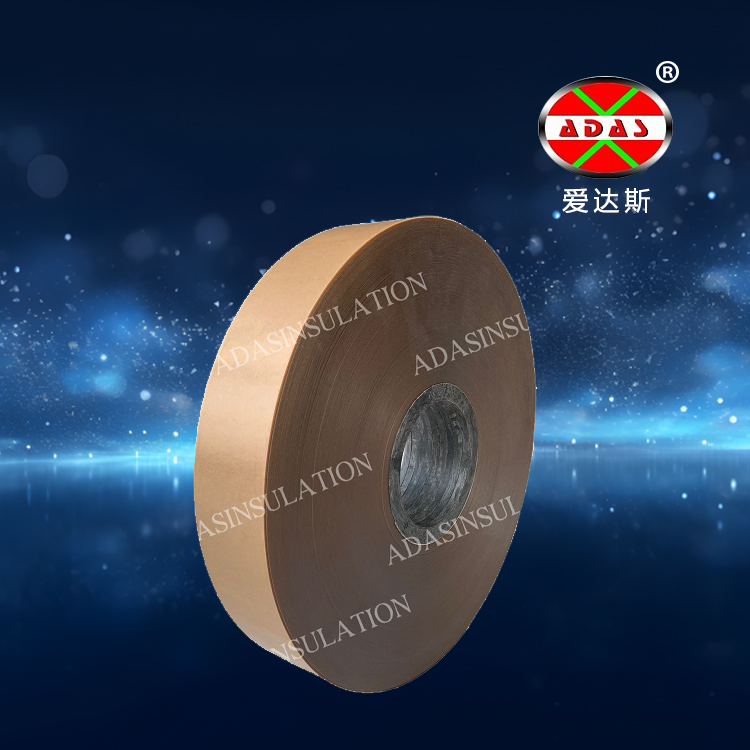

PMP insulation paper is a kind of insulating material which is made of capacitor paper laminated with polyester film.
PMP insulation paper has good dielectric properties and high mechanical strength, it is suitable for various high voltage transformers as interturn insulation.
|
NO. |
Properties |
UNIT |
VALUE |
||||
|
1 |
Nominal thickness |
mm |
0.05 |
0.06 |
0.07 |
0.08 |
0.10 |
|
2 |
Thickness tolerance |
mm |
±0.005 |
±0.006 |
±0.007 |
±0.008 |
±0.01 |
|
3 |
Density |
g/m3 |
65±7 |
80±8 |
90±9 |
100±10 |
140±14 |
|
4 |
Tensile strength (longitudinal) |
N/10mm |
≥50 |
≥60 |
≥70 |
≥80 |
≥100 |
|
5 |
Breakdown voltage |
Kv |
≥5 |
≥6 |
≥7 |
≥8 |
≥10 |
|
6 |
Normal adhesion |
Not layered |
|||||
|
7 |
Thermal adhesion |
No delamination, No foaming, No glue flow |
|||||
|
8 |
Shrinkage（％） |
≤3 |
|||||
