µçÀÂ

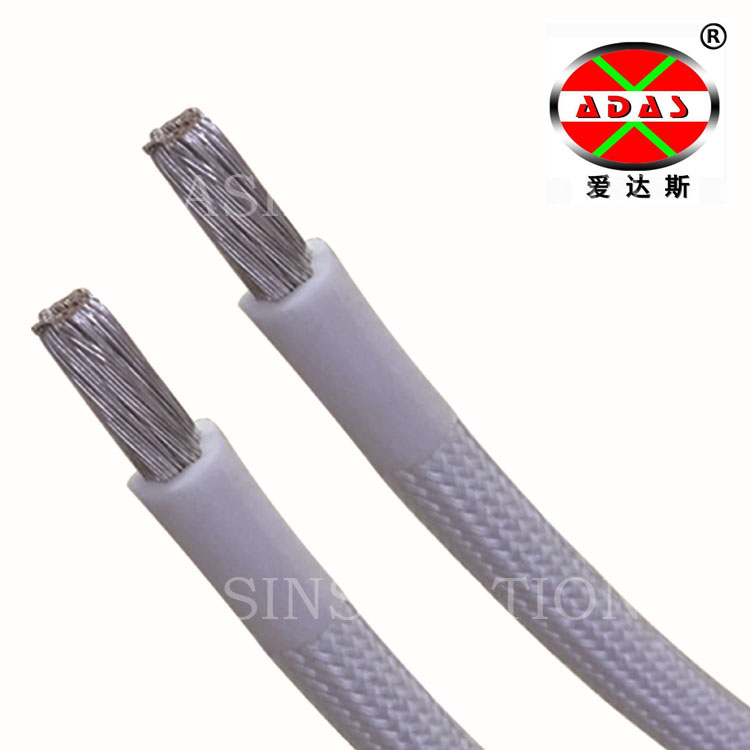

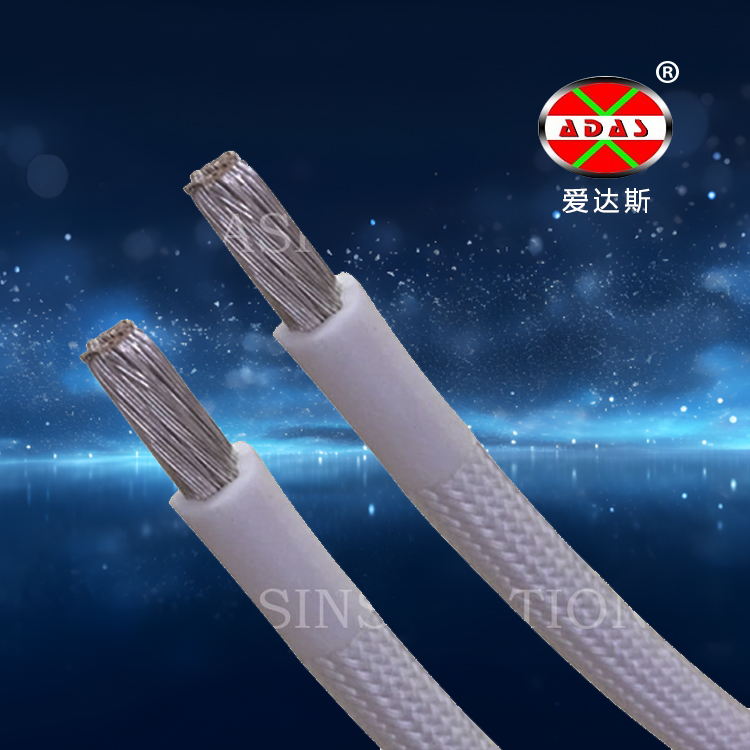

Product Description
Nominal Voltage:300V
Temperature Range: -60¡æ¡«+200¡æ
Testing Voltage:2000V
Conductor:Bare copper, Tinned Copper or Nickel plated copper
Insulator:Silicone
Pleach:Fiberglass
Colours:White-Blue-Red-Black-Brown-Yellow-Green
-Yellow/Green
| Conductor | Insulator | Realst.max | Permissible | ||||||
| AWG | Nominal | Conductor | Diameter | Nominal | Fiberglass | Nominal | Max | ||
| area | construction | Thickness | Thickness | Diameter | Diameter | Cuc,c 20¡æ | ampacity | ||
| mm2 | NO.X ¡émm | mm | mm | mm | mm | mm | ohm/km | 20¡æ-AMR | |
| 26 | 0.128 | 7/0.16 | 0.48 | 0.39 | 0.2 | 1.66 | 1.8 | 143 | 1.72 |
| 24 | 0.205 | 7/0.20 | 0.6 | 0.39 | 0.2 | 1.78 | 1.95 | 92 | 2.57 |
| 22 | 0.324 | 7/0.25 | 0.75 | 0.39 | 0.2 | 1.96 | 2.1 | 56.8 | 4.36 |
| 20 | 0.519 | 7/0.32 | 0.96 | 0.39 | 0.2 | 2.15 | 2.3 | 40.1 | 6.94 |
| 18 | 0.823 | 7/0.40 | 1.2 | 0.39 | 0.2 | 2.38 | 2.55 | 23 | 11.01 |
| 16 | 1.31 | 7/0.50 | 1.5 | 0.39 | 0.2 | 2.68 | 2.85 | 14.6 | 17.52 |
| 14 | 2.08 | 41/0.254 | 1.83 | 0.45 | 0.2 | 3.2 | 3.4 | 9.9 | 27.84 |
| 12 | 3.31 | 19/0.50 | 2.48 | 0.5 | 0.2 | 3.9 | 4.2 | 5.4 | 44.2 |
| 24 | 0.2 | 1/0.50 | 0.5 | 0.39 | 0.2 | 1.7 | 1.85 | 88.3 | 2.68 |
| 22 | 0.3 | 1/0.62 | 0.62 | 0.39 | 0.2 | 1.8 | 2 | 62.4 | 4.42 |
| 20 | 0.5 | 1/0.80 | 0.8 | 0.39 | 0.2 | 2 | 2.2 | 38.6 | 7.07 |
| 18 | 0.75 | 1/1.0 | 1 | 0.39 | 0.2 | 2.2 | 2.4 | 22.5 | 11.21 |
| 24 | 0.2 | 12/0.15 | 0.6 | 0.39 | 0.15 | 1.7 | 1.9 | 95 | 4.9 |
| 22 | 0.3 | 17/0.15,12/0.18 | 0.75 | 0.39 | 0.15 | 1.9 | 2.1 | 71.2 | 6 |
| 20 | 0.5 | 28/0.15,20/0.18 6/0.20 | 0.94 | 0.39 | 0.2 | 2.2 | 2.4 | 40.1 | 8.6 |
| 18 | 0.75 | 40/0.15,30/0.18 24/0.20 | 1.14 | 0.39 | 0.2 | 2.4 | 2.6 | 26.7 | 11.6 |
| 17 | 1 | 40/0.18,32/0.20 | 1.31 | 0.39 | 0.2 | 2.6 | 2.8 | 20 | 14.4 |
| 16 | 1.25 | 50/0.18,40/0.20 | 1.48 | 0.39 | 0.2 | 2.7 | 2.9 | 15.9 | 16.9 |
| 15 | 1.5 | 48/0.20,30/0.25 | 1.58 | 0.39 | 0.2 | 2.9 | 3.1 | 13.7 | 19.7 |
| 14 | 2 | 41/0.25 | 1.83 | 0.45 | 0.2 | 3.2 | 3.4 | 9.9 | 26 |
| 13 | 2.5 | 49/0.25 | 2.02 | 0.45 | 0.2 | 3.5 | 3.8 | 8.21 | 30.3 |
| 12 | 3.5 | 49/0.30 | 2.48 | 0.5 | 0.2 | 4.1 | 4.4 | 5.38 | 41 |
| 11 | 4 | 56/0.30 | 2.59 | 0.6 | 0.2 | 4.4 | 4.8 | 5.09 | 49 |
| 10 | 5.5 | 77/0.30 | 3.03 | 0.6 | 0.25 | 5 | 5.4 | 3.5 | 63 |
| 8 | 8 | 63/0.40 | 3.67 | 0.7 | 0.25 | 5.9 | 6.3 | 2 | 88.6 |
| 6 | 14 | 112/0.41 | 4.78 | 0.8 | 0.25 | 7.4 | 7.8 | 0.8 | 148 |
| Note:Max types we can supply is 500mm2. | |||||||||
